-10%

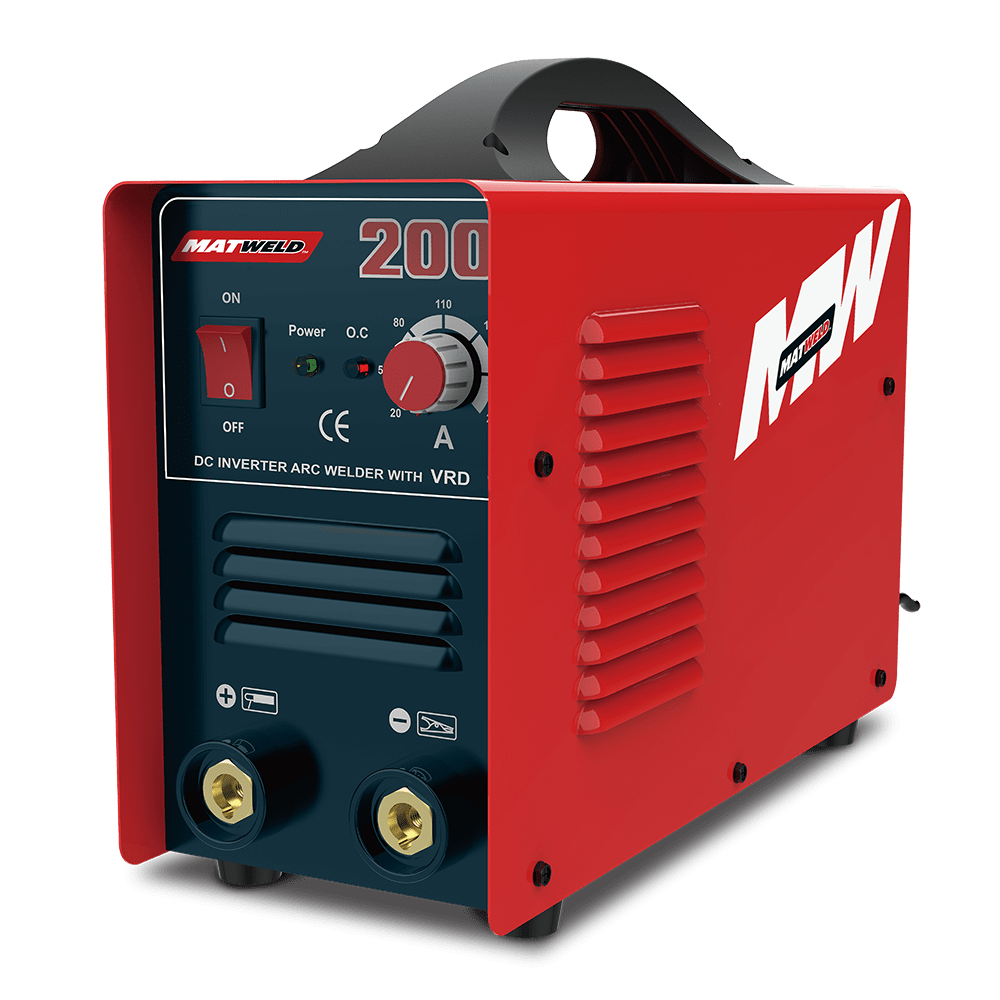

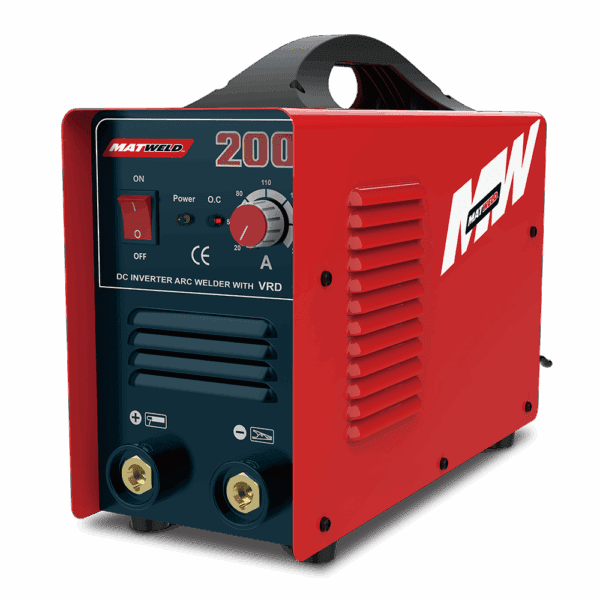

200 Amp Single Phase 220V Dc Inverters MMA / TIG – 200A With VRD
Original price was: R 3778,58.R 3400,73Current price is: R 3400,73.
Description
VRD stands for Voltage Reduction Device. A VRD reduces the maximum open circuit voltage across the output terminals to below 15 volts
This is a safety requirement of most mines in South Africa when the unit is to be operated underground or in damp conditions. The presence of a VRD can however cause difficulty in the striking and re-striking of the arc with less skilled operators. This is because the machine has to rapidly change from the reduced open circuit voltage of below 15 volts to the open circuit voltage of around 56 volts necessary to strike the arc.
Features
- Compact and lightweight
- Stable Arc with excellent striking capabilities
- Hot Start MMA
- Over Voltage and Over Current protection
- Carry Handle and Convenient Shoulder strap
- Suitable for Scratch Start TIG welding
- Supplied with welding cables
- Please Note: All VRD Machines must be Built-in and can’t have an on/off function
Technical Specifications
| Input Power Voltage: | Single Phase AC 220V+-10% |
| Rated Input Power Capacity: | 5.3KVA |
| No Load Voltage: | 9V |
| Output Current Range: | 20-200A |
| Rated Output Voltage: | 26.2V |
| Duty Cycle: | 60% |
| Weight: | 8Kg |
| Dimensions: | (LWH) 371 x 155 x 295mm |
